10.0 Exam Samples

1.0 Hamming Distance and Error Detection/Correction

First, we are given three codewords:

• C1: 0101111
• C2: 1010001
• C3: 1100010

These codewords are used in digital communication to represent information and help detect or correct errors.

a. What is the distance of this code?

🎯 Goal: Find the minimum Hamming distance of this code.

1. What is Hamming Distance? The Hamming distance between two strings of equal length is the number of positions at which the corresponding symbols are different. Simply put, it's how many bits you need to change to transform one codeword into another.

2. Calculate the pairwise Hamming distances:

   • d(C1, C2): 0101111 vs 1010001

        C1: 0 1 0 1 1 1 1
        C2: 1 0 1 0 0 0 1
            ↑ ↑ ↑ ↑ ↑ ↑   (differing bits)
        Differing bits: 6  => d(C1, C2) = 6

- **d(C1, C3):** `0101111` vs `1100010`

        C1: 0 1 0 1 1 1 1
        C3: 1 1 0 0 0 1 0
            ↑     ↑ ↑   ↑ (differing bits)
        Differing bits: 4  => d(C1, C3) = 4

- **d(C2, C3):** `1010001` vs `1100010`

        C2: 1 0 1 0 0 0 1
        C3: 1 1 0 0 0 1 0
              ↑ ↑     ↑ ↑ (differing bits)
        Differing bits: 4  => d(C2, C3) = 4

1. Distance of the code (\(d_{min}\)): The distance of the code is the minimum Hamming distance among all pairs of codewords. In our calculations, the distances are 6, 4, and 4. So, \(d_{min} = \min(6, 4, 4) = 4\).

   Answer (i): The distance of this code is 4.

b. How many errors can this code detect/correct?

🎯 Goal: Calculate the error detection and correction capabilities based on the minimum Hamming distance \(d_{min}\).

• We already know \(d_{min} = 4\).

1. Error Detection Capability (\(s\)): A code can detect up to \(s\) errors, where \(s = d_{min} - 1\). \(s = 4 - 1 = 3\). This means the code can detect up to 3 errors. If 1, 2, or 3 errors occur, we will definitely know the data is corrupted.

2. Error Correction Capability (\(t\)): A code can correct up to \(t\) errors, where \(t = \lfloor \frac{d_{min} - 1}{2} \rfloor\). (\(\lfloor x \rfloor\) means floor of x, i.e., round down to the nearest integer). \(t = \lfloor \frac{4 - 1}{2} \rfloor = \lfloor \frac{3}{2} \rfloor = \lfloor 1.5 \rfloor = 1\). This means the code can correct up to 1 error. If a 1-bit error occurs, we can not only detect it but also change it back to the correct codeword.

   Answer (ii): This code can detect up to 3 errors and correct up to 1 error.

c. You receive this code 0100011 what can you determine?

🎯 Goal: Analyze the received code R = 0100011 and determine its status.

1. Calculate the Hamming distance between the received code R and all original valid codewords:

   • R: 0100011
   • C1: 0101111
   • C2: 1010001
   • C3: 1100010
   • d(R, C1): 0100011 vs 0101111

        R:  0 1 0 0 0 1 1
        C1: 0 1 0 1 1 1 1
                  ↑ ↑     (differing bits)
        Differing bits: 2 => d(R, C1) = 2

- **d(R, C2):** `0100011` vs `1010001`

        R:  0 1 0 0 0 1 1
        C2: 1 0 1 0 0 0 1
            ↑ ↑ ↑     ↑   (differing bits)
        Differing bits: 4 => d(R, C2) = 4

- **d(R, C3):** `0100011` vs `1100010`

        R:  0 1 0 0 0 1 1
        C3: 1 1 0 0 0 1 0
            ↑             ↑ (differing bits)
        Differing bits: 2 => d(R, C3) = 2

1. Analyze the results:

   • The received code R (0100011) is not any of the original valid codewords (C1, C2, C3).
   • The distance from R to C1 is 2.
   • The distance from R to C2 is 4.
   • The distance from R to C3 is 2. We know the error correction capability of this code is \(t=1\). This means if the received codeword is at a distance of 1 from a valid codeword, we can correct it to that valid codeword. Currently, R is at a distance of 2 from both C1 and C3. This exceeds the 1-bit error correction capability. We cannot definitively correct R to C1 or C3.

   We also know the error detection capability is \(s=3\).

   • If the original codeword was C1, then 2 errors occurred (since d(R,C1)=2). Since 2 ≤ 3, this error is detectable.
   • If the original codeword was C3, then 2 errors occurred (since d(R,C3)=2). Since 2 ≤ 3, this error is also detectable.
   • If the original codeword was C2, then 4 errors occurred (since d(R,C2)=4). This is beyond the guaranteed detection capability (3 errors). What you can determine:
   • The received code 0100011 contains errors because it is not one of the valid codewords.
   • The number of errors is at least 2 (the minimum distance to C1 and C3).
   • Since the minimum distance is 2 and the correction capability is 1, this error cannot be uniquely corrected (it's equidistant from C1 and C3).
   • Since the number of errors (at least 2) is less than or equal to the detection capability (3), this error can be detected.

   Answer (iii): I can determine that the received code 0100011 contains errors, there are at least 2 error bits, and this error is detectable but cannot be uniquely corrected.

d. Add a new codeword that you would still maintain the distance.

🎯 Goal: Find a new 7-bit codeword C4 such that its Hamming distance to C1, C2, and C3 is at least \(d_{min} = 4\).

• Existing codewords:
  • C1: 0101111
  • C2: 1010001
  • C3: 1100010
• Requirement: For the new codeword C4:
  • d(C4, C1) ≥ 4
  • d(C4, C2) ≥ 4
  • d(C4, C3) ≥ 4

Attempt to find C4:

A simple strategy is to try codewords that are structurally very different, such as the all-zeros 0000000 or all-ones 1111111 codeword.

1. Try C4 = 0000000 (all-zeros codeword):

   • d(0000000, C1=0101111) = 5 (number of '1's in C1). \(5 \ge 4\) 👍
   • d(0000000, C2=1010001) = 4 (number of '1's in C2). \(4 \ge 4\) 👍
   • d(0000000, C3=1100010) = 4 (number of '1's in C3). \(4 \ge 4\) 👍 Excellent! 0000000 satisfies all conditions.

2. (Optional) Try C4 = 1111111 (all-ones codeword):

   • d(1111111, C1=0101111) = 2 (number of '0's in C1). \(2 \not\ge 4\) 👎 This one doesn't work because its distance to C1 is too small.

So, 0000000 is a valid new codeword.

Answer (iv): A new codeword that can be added is 0000000 . The Hamming distance from this codeword to all existing codewords (C1, C2, C3) is at least 4, thus maintaining the original minimum distance of the code.

2.0 Hamming Code

以上为 XOR

To construct a Hamming code for the data codeword 1100010 , we'll follow these steps, assuming even parity:

a. Determine the Number of Data and Parity Bits

• Data bits (m): The given data 1100010 has m=7 bits.
• Parity bits (p): We need to find the smallest integer p that satisfies the inequality \(2^p ≥ m+p+1\). For m=7:
• If p=3, \(2^3=8\). \(m+p+1=7+3+1=11\). Since 8<11, p=3 is not enough.
• If p=4, \(2^4=16\). \(m+p+1=7+4+1=12\). Since 16≥12, we need p=4 parity bits.
• Total bits (n): The total length of the Hamming codeword will be n=m+p=7+4=11 bits.

b. Position Parity and Data Bits

The parity bits (P) are placed at positions that are powers of 2. The data bits (D) fill the remaining slots. We'll label the input data bits as \(D_1 D_2 D_3 D_4 D_5 D_6 D_7=1100010\)

The 11-bit codeword structure is:

c. Calculate Parity Bits (Even Parity)

Each parity bit checks specific positions in the codeword. For even parity, the parity bit is set to 0 or 1 to make the total number of 1s in the checked positions (including the parity bit itself) even. Equivalently, P=XOR of data bits it checks.

• P1 (Position 1): Checks bits 1, 3, 5, 7, 9, 11. Data bits involved: D1, D2, D4, D5, D7 (at positions 3, 5, 7, 9, 11). P1=D1⊕D2⊕D4⊕D5⊕D7=1⊕1⊕0⊕0⊕0=0
• P2 (Position 2): Checks bits 2, 3, 6, 7, 10, 11. Data bits involved: D1, D3, D4, D6, D7 (at positions 3, 6, 7, 10, 11). P2=D1⊕D3⊕D4⊕D6⊕D7=1⊕0⊕0⊕1⊕0=0
• P4 (Position 4): Checks bits 4, 5, 6, 7. Data bits involved: D2, D3, D4 (at positions 5, 6, 7). P4=D2⊕D3⊕D4=1⊕0⊕0=1
• P8 (Position 8): Checks bits 8, 9, 10, 11. Data bits involved: D5, D6, D7 (at positions 9, 10, 11). P8=D5⊕D6⊕D7=0⊕1⊕0=1

d. Construct the Hamming Codeword

Now, we assemble the parity bits and data bits into the final 11-bit Hamming codeword:

The resulting Hamming codeword for the data 1100010 is 00111001010.

3.0 Can wireless be full duplex?

Standard wireless networks, such as those using CSMA/CA, operate on a half-duplex shared medium. Simultaneous transmission and reception on a single channel is considered impossible because a device's strong outgoing signal makes it difficult to detect a much weaker incoming signal. This is a key reason wireless networks use collision avoidance (CSMA/CA) rather than collision detection (CSMA/CD).

Full-duplex wireless communication is possible through two main approaches:

• Multiple Channels: It is possible to achieve full-duplex communication by using separate channels for transmitting and receiving
• Advanced Techniques: Limited full-duplex communication can be achieved on a single channel using advanced methods like interference cancellation.

4.0 What are the benefits of using CSMA/CD over CSMA/CA?

5.0 Describe scenarios where subnet masking is not needed.

6.0 Explain two different TCP closing scenarios and how they may happen.

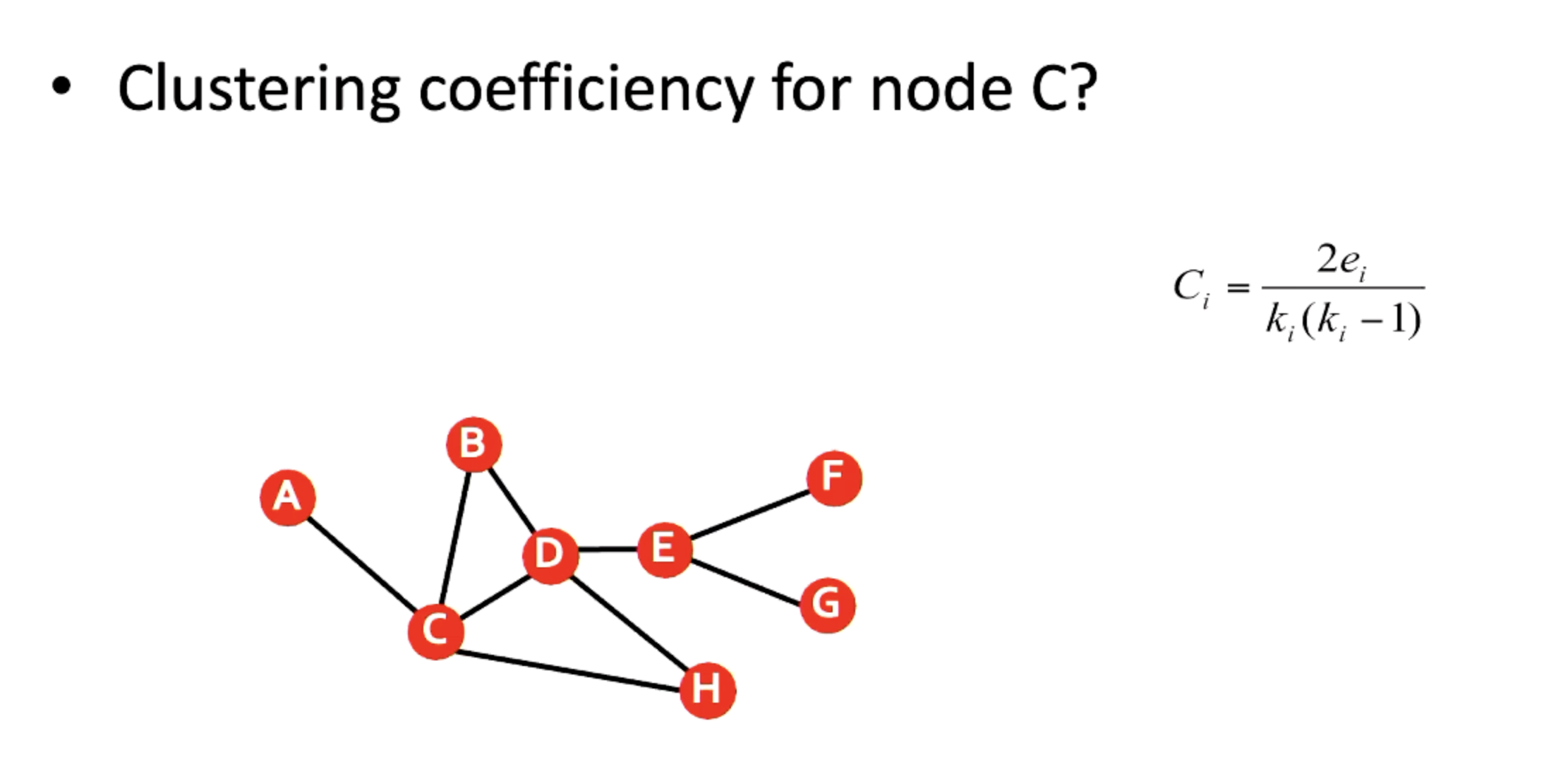

7.0 Clustering coefficient for node C?

集聚系数是用来衡量一个节点的邻居节点之间有多么“抱团”（即相互连接）的程度。

集聚系数是用来衡量一个节点的邻居节点之间有多么“抱团”（即相互连接）的程度。

首先，我们来看一下题目给出的公式：

• \(C_i\): 我们要计算的节点（这里是节点C）的集聚系数。
• \(k_i\): 该节点的度 (degree)，也就是它有多少个直接相连的邻居节点。
• \(e_i\): 在该节点的邻居节点之间，实际存在多少条边（连接）。

a. 找出节点C的邻居，并计算其“度”

我们先看看图中有哪些节点是直接与节点C相连的：

• 节点 A
• 节点 B
• 节点 D
• 节点 H

节点C一共有 4 个邻居。所以，节点C的"度" \(k_C = 4\)。

b. 找出节点C的邻居之间有多少条连接 (\(e_C\))

这一步是关键。我们需要在C的邻居集合 {A, B, D, H} 中，寻找它们相互之间的连接。

• A 和 B 之间有连接吗？ 没有。
• A 和 D 之间有连接吗？ 没有。
• A 和 H 之间有连接吗？ 没有。
• B 和 D 之间有连接吗？ 有。
• B 和 H 之间有连接吗？ 没有。
• D 和 H 之间有连接吗？ 有。

检查完毕，在C的4个邻居之间，总共有 2 条连接（B-D 和 D-H）。所以，邻居之间的连接数

\(e_C = 2\)。

c. 代入公式计算

现在我们已经得到了所有需要的值：

• \(k_C = 4\)

• \(e_C = 2\)

我们将这些值代入公式：

\(C_C = \frac{2 \times e_C}{k_C(k_C - 1)}\)

\(C_C = \frac{2 \times 2}{4(4 - 1)}\)

\(C_C = \frac{4}{4(3)}\)

\(C_C = \frac{4}{12}\)

\(C_C = \frac{1}{3}\)

所以，节点C的集聚系数是 1/3 （约等于 0.333）。
